Product description

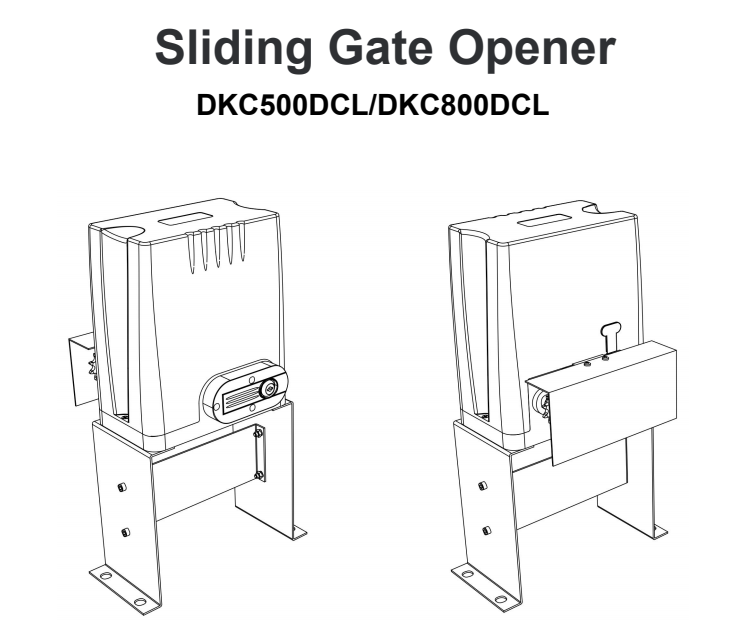

The DKC800DCL sliding gate opener is applicable to gates with weight less than 800KG, and length less than 12m. The gate opener is driven by the sprocket and chain transmission. This gate opener must be installed inside the enclosure of your property for safety.
Gate motion is achieved by the rotating output gear of the gate opener driving the chain fitted to the moving gate.
The gate opener requires you to press the remote control once to open, and once again to close. This is a safety feature to ensure safe operation.
The opener must be fitted within private property, never externally to a property’s boundary.
Optional parts
- Additional remote controls: Spare/Additional remotes for the automatic gate kit, these will need to be paired to the motor.
- Infrared photocell: Detects pedestrians, vehicles and objects that cross an infrared beam and prevents the gate from closing.
- Wireless keypad: Allows secure access through the gate used with a user set code.
- Wired control: Allow users to control the opening and closing of the door through an external push-button.
- Alarm lamp: Alerts people near the gate and users that the gate is in operation
Technical specifications
| Model | DKC500DCL | DKC800DCL |
| Power supply | 110V/AC/60Hz |
| Motor power | 150W | 170W |
| Gate moving speed | 13m/min | 18m/min |
| Maximum loading weight | 500kg | 800kg |
| Remote control distance | ≥30 m |
| Remote control mode | Single button mode |
| Limit switch | Magnetic |
| Working noise | ≤ 56 dB |
| Working duty | S2,20min |
| Recording of up remote controls | 40 |
| Remote frequency | 433.92 MHz |
| Working temperature | -20°C ~ +70°C |
| Package weight | 16.42kg | 16.5kg |
Gate Preparation
Ensure that the sliding gate is correctly installed.
The gate is horizontal and level and the gate can glide back and forth smoothly when moved by hand before installing the gate opener.
Wheels and guide rollers should rotate easily and be free from dirt or grime.
Track should be flat, level and firmly affixed.
Any misalignment in the gate will affect performance of the automatic gate opener.
Function
Soft Start and slow stop
Automatic reverse after encountering obstacles
Motor output force, stall force, slow stop distance are adjustable
Automatic close with waiting time adjustable
Partial openning for pedestrian passes
How can I place an order?
You can contact any of our salesmen for machine and order details. Please tell us your requirements as clearly as possible when making an inquiry, so that we can send you a quotation as soon as possible.
Customer service
● One-year warranty
● Quick reply to help you solve the problems
● Professional technical team
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
DKC500DCL, DKC800DCL User Manual.pdf
