FRID card reader security entrance arm drop barrier turnstile biometric access control system
PRODUCT SPECIFICATION
| Entrance width | 500mm (default) |
| Framework material | SS304 stainless steel |
| Power supply | AC220+/-10% V, 50Hz, AC110+/-10% V, 60Hz, |
| Temperature | -20 to 60 ℃ |
| Relative humidity | ≤ 90% |
| Working environment | Indoor, outdoor (with a tent over) |
| Normal life-span | 5 million times |
| LED indicator | 4 |
| card reader window | 2 |
| Transit speed | 25-40 persons/min |
| Open/close time | 0.2S |
| Input interface | Dry contact signal or +12V level signal |
Automatic Drop arm Barriers Description
Full Auto drop arm Barriers full body manufactured from 304 stainless steel, which consists of mechanism,electric circuit, arm, sensors, motor, led lamp and so forth. Primarily used in excessive safety locations,with standard fire interface, gate open for evacuation when power energy cut off when fire alarm triggered reminiscence could be set,swipe card several occasions for group go.quick transit pace,wing colour,casing dimension and sensor number could be custom-made.
Automatic Drop arm Barriers Application
Bus station, school, tourist attraction, Factory entrance and exit management
Exhibition, swimming pool, etc
Time attendance, access control, consumption management
Special access control management system
FUNCTION & FEATURES
1.Infrared protection
2.Excellent housing design, save space
3.Several working mode, normal open or normal close
4.LED light, optional color
5.Self-examine and alarm, it is convenient for maintenance and use.
6.Being able to program operation status by the small keyboard in the main board
7.Protect pedestrian from hurt
8.Light and sound alarm function
9.Arms are automatically locked until opening signal is received.
10.Arms synchronization (adjustable)
11.Automatically open the gate when power off and automatically close when power on
12.Optional reader: rfid card, fingerprint, face amchine, button, intercom system and so on
13.Single direction or bi-direction are optional
14.It can be directly control by remote control (optional)
15.Can be linked with a variety of control equipments, receiving the signal of relay switch .
16.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.

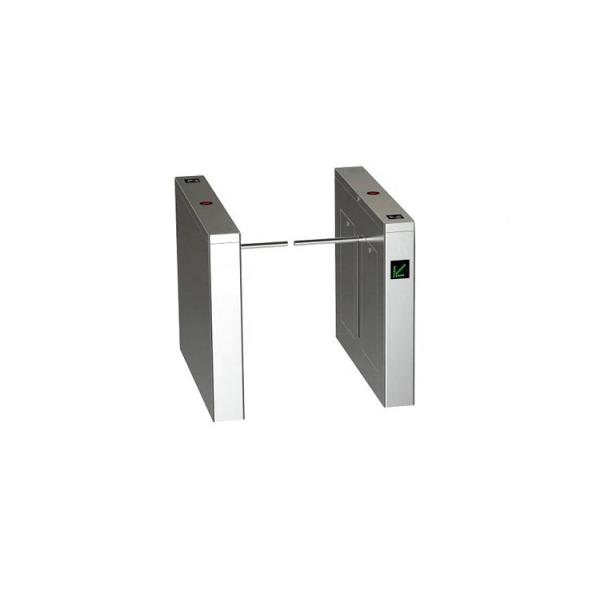

PHOTOS OF Automatic Drop arm Barriers
