Road safety 16mm thickness A3 steel outdoor solid anti-terrorism hydraulic blocker with LED lamp
DESCRIPTION
This is a high quality road blocker which is used widely to protect security areas from vehicle intrusion.
It is an ideal solution for entrance with high security requirements. Raising time is 3s or less and the blocking height
is 500mm when it is raised. Even if the intrusion is from high tonnage vehicle in high speed, the road blocker will stop
the vehicle easily because it is so solid that vehicle will break after the impact instead.
There are also some extra safety precaution design of the road blocker.
The LED bar on the road blocker can effectively avoid accidents caused by poor vision of drivers at night.
In case of power failure, the road blocker can be lowered or raised manually with hand pump.
Equipped with PLC (Programmable Logic Controller), various control methods can be achieved easily,
such as biometric readers, remote control and push button station.
The road blocker is commonly found in customs, ports, prisons and military bases where traffic guidance
is needed to protect people and property. This product provides ideal access control in areas mentioned
above and raises the level of security.
MAIN FEATURES
• Raise/lower smoothly and quietly with hydraulic drive unit
• Equipped with LED bar
• Solid structure make sure high weight load
• Extra terminal to support variety of control methods
• In case of power failure, the road blocker can be lowered or raised manually
SPECIFICATIONS
| Drive unit | Hydraulic |
| Length | 2,000 / 2,500 / 3,000 / 3,500 / 4,000 / 4,500 / 5,000 / 5,500 / 6,000mm |
| Width | 1,000mm |
| Height | 760mm |
| Weight | ≥1T |
| Raising height | 500mm |
| Raising / lowering time | 3s |
| Weight load | 120T |
| Material | Medium carbon steel with anti-corrosive paint |
| Material thickness | 16 / 20 / 25mm |
| Working voltage | Three-phase 380V |
| Working temperature | -35 °C -75 °C |

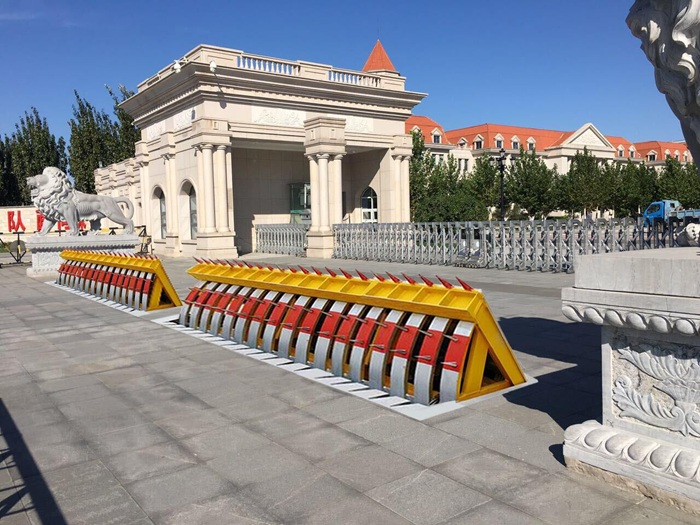

PRODUCTION PHOTO
What is the feature of the Hydraulic Road Blocker?
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4. Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up&down within 30 meters range
6. Customized for different users requests
7. Controller display : LCD and LED
8. Swiping card system: built-in card reader to control bollards up&down
9. Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10. Connected with Computer Management OR Charging Systems
CASE REFERENCE
