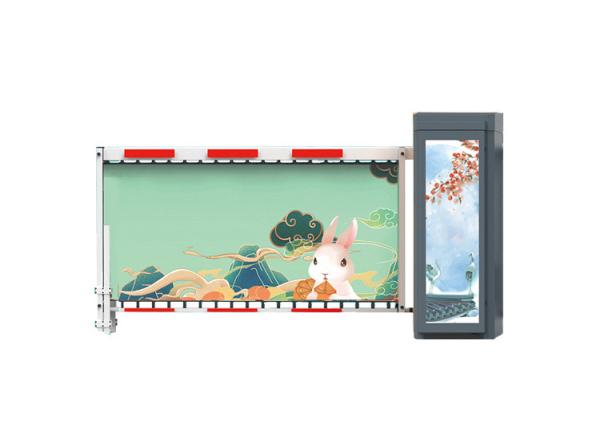

IP44 DC 24V Advertising Arm Parking Entrance Barrier

  • 1
  • 2

Brand Name : SINOMATIC

Model Number : SN-BG-AD02

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/A, L/C, D/P

Supply Ability : 1,000pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Running speed : 3sec-8sec

Surface treatment : Antirust spraying

Case color : Yellow, grey, orange, red, blue etc

Arm type : Advertising Arm

Power supply : AC100V~240V; DC24V

MCBF : 5 Million Cycles

Contact Now

DC 24V Durable Commercial Advertising Parking Entrance Barrier Gate

Technicial specifications

Item
Value
Place of Origin
China
Power supply
AC100V~240V; DC24V
Brand Name
SINOMATIC
Model Number
DC Advertising gate barrier
MCBF
5 Million Cycles
Boom Length
Max 4 meters
Safety of Car
Auto-reversing on obstacle
Open/Close Time
3sec to 8 sec adjustable
Working temperature
-35℃ ~ +85℃
Motor
DC Brushless Advertising Motor
Protection Grade
IP44
Housing color
Grey ,Orange or customized
Certificate
CE ISO

IP44 DC 24V Advertising Arm Parking Entrance Barrier

Technicial specifications

1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:3s-10s

4 Rated current:9.5A

5 Rated power:250W

6 No-load speed:2500rpm

7 Rated speed:1800rpm

8 Output Power:120N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:4M

Main Function and Features

1 The running speed can be adjusted from 3sec to 10sec.

2 Open the barrier by motor wheel when power off.Automatically reset when power on.

3 Curved crank arm three-link movement structure,operation stable

4 Wireless remote control open and close.

5 Arm auto reverse( force adjustable)

6 Infrared photocell is available

7 Loop detector is available

8 Connect parking management system open, close signal.(request open and close signal)

9 Traffic light port(2A12V/220VAC, less than 40W traffic light can be used)

10 Offering limit signal for car parking management system( output COM/NO/NC)

11 Delay closing arm function

12 RS485 or CAN internet communication interface( no need to add module)

13 Counting interface

14 24 backup battery interface(can be connected with solar power)

Arm length speed comparison table

Menu

Parameter

Unit

Arm length

UP DOWN
H00-00 H00-02 H00-04 H00-01 H00-03 H00-05
4.5M 30 35 8 30 42 8
3.8M 35 35 8 35 42 8
3M 65 30 10 60 35 10

(the parameter is based on our company’s arm)

Product Package

Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board 1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole 1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key 1 clutch device
Case Key 2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface 1 Optional
Disc 1 Optional
Communication Mould 1 Optional
Cover head 1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole
